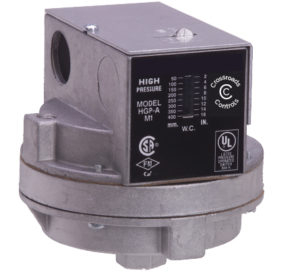

High-Low Gas Pressure Switch
The Model A – Single is a high-low gas pressure switch that monitors pressure and cuts off the electrical control circuit when pressure rises above or drops below the desired set point. The high and low gas pressure settings are adjustable. All models are available in reset or recycle type.
- Rugged die-cast aluminum construction
- Mounts horizontally without leveling
- Cost-effective pricing
- Custom design per OEM specifications available
This item is available in the following models:
| Switch | Model | Reset | Ranges | Range |
|---|---|---|---|---|
| RLGP-A | 803112701 | Automatic Reset | Low Gas Pressure | 1" to 6" W.C. (25 to 150 mm) |
| RLGP-A | 803112702 | Automatic Reset | Low Gas Pressure | 2" to 14" W.C. (50 to 350 mm) |
| RLGP-A | 803112703 | Automatic Reset | Low Gas Pressure | 6" to 24" W.C. (150 to 600 mm) |
| RLGP-A | 803112704 | Automatic Reset | Low Gas Pressure | 10" to 50" W.C. (250 to 1,250 mm) |
| RHGP-A | 803112801 | Automatic Reset | High Gas Pressure | 2" to 16" W.C. (50 to 400 mm) |
| RHGP-A | 803112802 | Automatic Reset | High Gas Pressure | 5" to 28" W.C. (125 to 700 mm) |
| RHGP-A | 803112803 | Automatic Reset | High Gas Pressure | 10" to 50" W.C. (250 to 1,250 mm) |
| LGP-A | 803112501 | Manual Reset | Low Gas Pressure | 1" to 6" W.C. (25 to 150 mm) |
| LGP-A | 803112502 | Manual Reset | Low Gas Pressure | 2" to 14" W.C. (50 to 350 mm) |
| LGP-A | 803112503 | Manual Reset | Low Gas Pressure | 6" to 24" W.C. (150 to 600 mm) |
| LGP-A | 803112504 | Manual Reset | Low Gas Pressure | 10" to 50" W.C. (250 to 1,250 mm) |
| LGP-A | 803112506 | Manual Reset | Low Gas Pressure | 2" to 20" W.C. (50 to 500 mm) |
| LGP-A | 803112509 | Manual Reset | Low Gas Pressure | 1" to 35" W.C. (25 to 875 mm) |
| HGP-A | 803112601 | Manual Reset | High Gas Pressure | 2" to 16" W.C. (50 to 400 mm) |
| HGP-A | 803112602 | Manual Reset | High Gas Pressure | 5" to 28" W.C. (125 to 700 mm) |
| HGP-A | 803112603 | Manual Reset | High Gas Pressure | 10" to 50" W.C. (250 to 1,250 mm) |
View Owner’s Manual for all Model A – Single Models | View Spec Sheet for all Model A – Single Models
