Two-Circuit Control

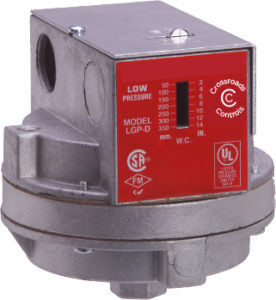

The Model D – Single is an accurate and reliable switch. It features a two-circuit control in which each set point controls two independent dry contacts to switch to two different voltages. The high- and low-pressure settings are adjustable. Available in reset and recycle types.
- Rugged die-cast aluminum construction
- Mounts horizontally without leveling
- Cost-effective pricing
- Custom design per OEM specifications available
This item is available in the following models:
| Switch | Model | Range | Pressure | Reset |
|---|---|---|---|---|
| RLGP-D | 803114101 | 2" to 14" W.C. (50 to 350 mm) | Low Gas Pressure | Automatic Reset |
| RLGP-D | 803114102 | 10" to 50" W.C. (250 to 1,250 mm) | Low Gas Pressure | Automatic Reset |
| RHGP-D | 803114001 | 5" to 28" W.C. (125 to 700 mm) | High Gas Pressure | Automatic Reset |
| RHGP-D | 803114002 | 10" to 50" W.C. (250 to 1,250) | High Gas Pressure | Automatic Reset |
| LGP-D | 803113901 | 2" to 14" W.C. (50 to 350 mm) | Low Gas Pressure | Manual Reset |
| LGP-D | 803113902 | 10" to 50" W.C. (250 to 1,250 mm) | Low Gas Pressure | Manual Reset |
| HGP-D | 803113801 | 5" to 28" W.C. (125 to 700 mm) | High Gas Pressure | Manual Reset |
| HGP-D | 803113802 | 10" to 50" W.C. (250 to 1,250) | High Gas Pressure | Manual Reset |
View Owner’s Manual for all Model D – Single Models | View Spec Sheet for all Model D Single Models
