Adjustable High-Low Pressure Settings

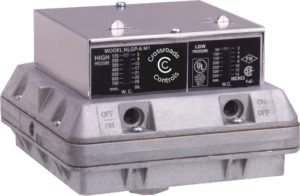

The Model A – Double is a high-low gas pressure switch that monitors pressure and cuts off the electrical control circuit when pressure rises above or drops below the desired set point. The high and low gas pressure settings are adjustable. All models are available in reset or recycle type.
- Rugged die-cast aluminum construction
- Mounts horizontally without leveling
- Cost-effective pricing
- Custom design per OEM specifications available
This item is available in the following models:
| Switch | Model | Reset | Ranges | Range |
|---|---|---|---|---|
| RHLGP-A | 804112101 | Automatic Reset | 2" to 16" W.C. (50 to 400 mm) | 1" to 6" W.C. (25 to 150 mm) |
| RHLGP-A | 804112102 | Automatic Reset | 5" to 28" W.C. (125 to 700 mm) | 1" to 6" W.C. (25 to 150 mm) |
| RHLGP-A | 804112103 | Automatic Reset | 10" to 50" W.C. (250 to 1,250 mm) | 1" to 6" W.C. (25 to 150 mm) |
| RHLGP-A | 804112104 | Automatic Reset | 2" to 16" W.C. (50 to 400 mm) | 2" to 14" W.C. (50 to 350 mm) |
| RHLGP-A | 804112105 | Automatic Reset | 5" to 28" W.C. (125 to 700 mm) | 2" to 14" W.C. (50 to 250 mm) |
| RHLGP-A | 804112106 | Automatic Reset | 10" to 50" W.C. (250 to 1,250 mm) | 2" to 14" W.C. (50 to 350 mm) |
| RHLGP-A | 804112107 | Automatic Reset | 5" to 28" W.C. (125 to 70 mm) | 6" to 24" W.C. (150 to 600 mm) |
| RHLGP-A | 804112108 | Automatic Reset | 10" to 50" W.C. (250 to 1,250 mm) | 6" to 24" W.C. (150 to 600 mm) |
| RHLGP-A | 804112109 | Automatic Reset | 10" to 50" W.C. (250 to 1,250 mm) | 10" to 50" W.C. (250 to 1,250 mm) |
| HLGP-A | 804111701 | Manual Reset | 2" to 16" W.C. (50 to 400 mm) | 1" to 6" W.C. (25 to 150 mm) |
| HLGP-A | 804111702 | Manual Reset | 5" to 28" W.C. (50 to 400) | 1" to 6" W.C. (25 to 150 mm) |
| HLGP-A | 804111703 | Manual Reset | 10" to 50" W.C. (250 to 1,250) | 1" to 6" W.C. (25 to 150 mm) |
| HLGP-A | 804111704 | Manual Reset | 2" to 16" W.C. (50 to 400 mm) | 2" to 14" W.C. (50 to 350 mm) |
| HLGP-A | 804111705 | Manual Reset | 5" to 28" W.C. (125 to 700 mm) | 2" to 14" W.C. (50 to 350 mm) |
| HLGP-A | 804111706 | Manual Reset | 10" to 50" W.C. (250 to 1,250 mm) | 2" to 14" W.C. (50 to 350 mm) |
| HLGP-A | 804111707 | Manual Reset | 5" to 28" W.C. (125 to 700 mm) | 6" to 24" W.C. (150 to 600 mm) |
| HLGP-A | 804111708 | Manual Reset | 10" to 50" W.C. (250 to 1,250 mm) | 6" to 24" W.C. (150 to 600 mm) |
| HLGP-A | 804111709 | Manual Reset | 10" to 50" W.C. (250 to 1,250 mm) | 10" to 50" W.C. (250 to 1,250 mm) |
View Owner’s Manual for all Model A – Double Models | View Spec Sheet for all Model A – Double Models
