Model D – Double – Crossroads

Reset and Recycle Types

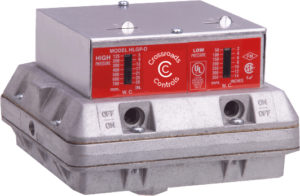

The Model D – Double is an accurate and reliable switch. It features a two-circuit control in which each set point controls two independent dry contacts to switch to two different voltages. The high- and low-pressure settings are adjustable. Available in reset and recycle types.

Rugged die-cast aluminum construction
Mounts horizontally without leveling
Cost-effective pricing
Custom design per OEM specifications available

This item is available in the following models:

Show entries

Search:

Show entries

Search:

Show entries

Search:

Switch	Model	Reset	High Range	Low Range
RHLGP-D	804114301	Automatic Reset	5" to 28" W.C. (125 to 700 mm)	2" to 14" W.C. (50 to 350 mm)
RHLGP-D	804114302	Manual Reset	10" to 50" W.C. (250 to 1,250 mm)	2" to 14" W.C. (50 to 350 mm)
RHLGP -D	804114303	Manual Reset	10" to 50" W.C. (250 to 1,250)	10" to 50" W.C. 250 to 1,250)
HLGP-D	804114201	Manual Reset	5" to 28" W.C. (125 to 700 mm)	2" to 14" W.C. (50 to 350 mm)
HLGP-D	804114202	Manual Reset	10" to 50" W.C. (25 to 1,250 mm)	2" to 14" W.C. (50 to 350 mm)
HLGP-D	804114203	Manual Reset	10" to 50" W.C. (250 to 1,250 mm)	10" to 50" W.C. (250 to 1,250 mm)

Showing 1 to 6 of 6 entries

Previous Next

Showing 1 to 6 of 6 entries

Previous Next

Showing 1 to 6 of 6 entries

Previous Next

View Owner’s Manual for all Model D – Double Models | View Spec Sheet for all Model D – Double Models
